*  2A3 Single Ended Amplifier

家で音楽を楽しむ為の 2A3 シングルアンプの製作


カウンター Counter started on 15th Apl 2012



2A3 Single Ended Amplifier on 2012 apl

2A3 Single Ended Amplifier on 2012 Apl



2A3 Single Ended Amplifier on 2012 no2

Schematic diagram for 2A3 Single Ended Amplifier


This time doing re-build up only 2A3 single ended amplfier.but using all resistance
are Metal film resistance.as you know 3-4 type of resistace we can get commercial.
one of carbon resistace, wire wound resistance and Metal film resistance.same value
but each material makes very different sound will be get.carbon resistance are good for flat amplifier
even using power amplifier . as you know Metal oxicide film resistance are good for power amplifier.
will be get good bass and mid ,high is very bright sound.
this single amplifier is 2A3 single ended amplfier with 3 stages amplification.
EF86(triode mode) + ECC82/802/12AU7 + 2A3C/B and XE20S ISO Tango.

About resistance:
Most good resistance are Skeltonskelton resistance in Japan and
Z201 Vishay resistance are very high cost but very good using High End Amplifier's.
used be use carbon resistance all parts of my amplifiers but
I will be back to Matal corting film resistance by Takman Electronics co Japan.
TDO Metal
Takman Matal film Resistance(REY) by Takman and web site is Takman Electronics Co Japan
show above picture is Takman resistance, very budget resistance but sound is best for me.
to get much low range and mid /high is so sweet sound.REX and REY are for Audio resistance.

and this is Metal film resistance RSN1S TDO resistance

Charactor: Sound is good low ranges and good high range . if your amplifier does not get good low(Good Bass).
please try to replace of all resistance of Metal film resistance. You will be get good Bass and high frequency
tone. famous resistance are "KOA metal film MOS1/2C " "Vishay Metal film Z201" "Skelton Fukushima-Furaba"
"TDO, Solist or Takman Metal film" "Vishay MBB0207-50F" "AMRA" "Rikyu RO-25CFK"
"Vishay RN65D" "Takman RLF" "Tokyo Koon denpa RD" "Nikkohm solid resistance RP" "Alfa Electronics FLCX"
"Vishay VSR" "Takman REY" etc etc.

so recently I like sound of "Takman REY" and "Takman RSN1S" to get good bass from
my single ended Amplifiers.Nikkohm RP are good too.
REX and REY resistance Takman

REX Takman Resistance Co Japan




Nikkohm Matal ResistanceNikkohm resistanceuse for High End Audio and RF


so Resistance change sound of your Amplifiers.
probably the carbon resitance are good for pre-amplifier and some parts in power supply circuit.
how about you ? please try to use different resistance into your amplifier D.I.Y
今回は以前に失敗したシャーシの再利用で、前に製作した2A3シングルアンプを解体して再度 同じ部品を使って組み上げました。
変更部分は電圧メーターを外して、ドライバーを大分前に製作した形のEF86の3結にもどしました。


EF86 の3結は音色が良くある意味音が細いのですが、この繊細な音は他の球には出せないものを感じます。
1/2Wの足の短いニッコームの金被は信号部に関係する場所にTakmanのREYは電源回りとグリッドリーク抵抗に使いました。
唯一の巻き線は終段のカソード抵抗です。ニッコームの抵抗もっと高いワッテージがあると良いのですが、
半導体用の小型のしかなく残念ですね、足ももう少し長ければ球のアンプには都合が良いのですが、?
カップリングは昔購入したEROのフィルムキャパシターです。MKT1813 , MKP1846 です。カソードのバイパスは
ルビコンとミューズを使っています。電源はセラファイン(100uF x2 500V)です。RCAはカルダス風の模造品です。
これは1組 220円で秋葉原で売られていたものです。CMC と言うメーカーのものです。まさしくカルダスです。:)
作り直した理由ですが、ドライバーの真空管がパワーに接近しており終段のパワー管の冷却が悪くなり、球を壊す結果と
なるからです。やってみると良い経験になると思います。でも虎の子の球を壊します。要 注意です。

ニッコームの酸化金属抵抗の音は、とてもRSN1S TDOの音に大変似ていると思います。
明るく、高域特徴はましく、酸化金属抵抗から出てくる音です。

続く!!!

音はこんな感じです、デジタルカメラのマイクの特性がハイ上がりなため低域が出ていませんが、大変明るい音です




2A3/45/71A コンパチ・シングル・アンプの製作

回路図は以下になります。(2012.Sep.8th から)このアンプは南米の砂漠の真ん中からオーダーがあったものです。
某日 300Bをさしてみましたが、+Bの300Vですが、まあいけると思います。4W以上は出ると思いますが、
この回路で2A3/45/71A と300Bを鳴すことが出来ます。71A と300Bは、おまけです。
しかしながら71A は結構 良い音が出るのです。でもそこそこ0.5 W しかありませんが、ビーンと引き締まった低域
なぜ、2A3 や300Bでこんな音が出ないのでしょうか? もっとパワーが出ると良いと思います。
XE-20S ですので、申し分のない音です。
2A3はクラシック・コンポーネントで、2012.11より販売しているチタンプレートの桂光の2A3Bは素晴らしいパワー感
1年前まで存在した、2A3C NGGと遜色ない音を出しています。45シングルとしても、71A シングルとしても
申し分ない音です。オーダーした人は Lowthers DX-4のドライバーを使っており、71A シングルで鳴すのを楽しみにして
いるとのことです。

2A3/45/71A single ended amplifier 2012

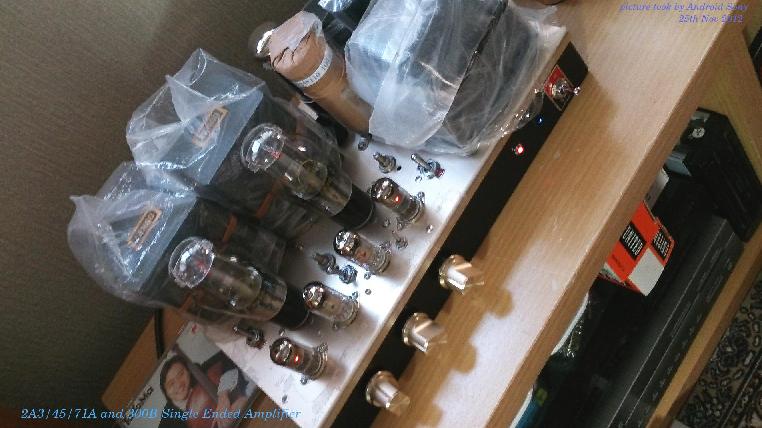

2A3/45/71A and 300B Single Ended Compatible Amplifier on 2012


2A3/45/71A Single Ended Amplifier 2012

2A3/45/71A と一応 300B シングル・コンパチアンプ 2012.Nov

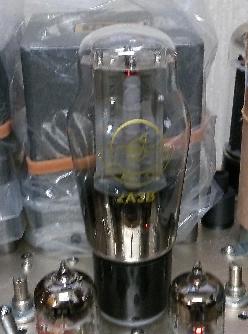

桂光 2A3B

桂光 2A3B 2012 NOV : classic components in Japan
